How Much Material Can a High-Precision Stretch Film Extrusion Machine Save You?

In industrial packaging, material efficiency and load stability are the primary drivers of profitability. Standard semi-automatic stretch film extrusion lines often suffer from inconsistent film gauge, leading to massive material waste. Transitioning to high-precision, multi-layer technology fundamentally redefines your production economy.

1. Multi-Layer Co-Extrusion: Optimizing the A/B/A Structure

A high-performance 3-layer stretch film machine utilizes a co-extrusion feedblock to create a sophisticated A/B/A structure.

• Outer Layers: Formulated with high-cling metallocene resins for superior tack.
• Core Layer: Utilizes cost-effective LLDPE or recycled content to maintain strength.
• This configuration reduces virgin raw material consumption by 15-20% without sacrificing puncture resistance. For advanced requirements, a 5-layer stretch film machine allows for even thinner "downgauging"—reducing film from 25 microns to as low as 12 microns while maintaining high unitizing force.

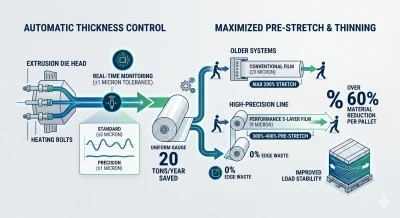

2. Automatic Thickness Control: Precision to ±1 Micron

The significant material savings come from an automatic stretch film machine equipped with a closed-loop automatic thickness control system.

• Real-Time Monitoring: Infrared sensors measure the web thickness instantly after the die.
• Servo-Driven Accuracy: The system adjusts the die bolts and screw speeds in real-time to maintain a gauge deviation of ±1 micron.
• By tightening tolerances from the industry-standard ±3 microns to ±1 micron, a plant producing 2,000 tons annually can save approximately 20 tons of polyethylene per year.

3. Maximizing Pre-Stretch Ratios and Load Stability

Conventional monolayer stretch film machines often leave 40% of a film’s tensile strength untapped. In contrast, high-precision lines enable:

• Higher Pre-Stretch: Achieving 300% to 400% pre-stretch ratios compared to the 200% limit of older systems.
• Significant Weight Reduction: High-performance 9-micron film produced on a 5-layer line can replace standard 23-micron film, reducing material usage per pallet by over 60%.
• Reduced Waste: Precision winding and exact layflat width control eliminate edge trim waste, which typically accounts for 3-5% loss in semi-automatic stretch film machine setups.

4. Technical Conclusion: The ROI of Precision

Investing in a 3-layer or 5-layer stretch film machine with full automatic control is a strategic move toward sustainable production. By combining multi-layer optimization with precision gauge control, manufacturers can reduce their Total Cost of Ownership (TCO) by 25% to 35%.

This technology does more than save material; it ensures extreme load stability and significantly lowers the carbon footprint of your packaging operations.
