Maximizing Film Stability: Traction and Edge Trimming in 2-Layer Stretch Film Machines

In the production of 2-layer stretch film, inconsistent tension and poor edge quality are the primary causes of downtime and material waste. Achieving a high-performance film requires a synchronized approach to traction control and edge trimming to ensure a perfectly stable web profile.

1. Challenges in 2-Layer Web Stability

Conventional extrusion lines often struggle with differential stresses between layers. These internal stresses can lead to several critical defects:

• Edge Weave: Inconsistent tracking that creates unstable roll edges.
• Wrinkles: Tension imbalances that cause permanent deformation in the film.
• Web Profile Irregularities: Variations that propagate through the winding process, leading to roll failure.
• 2. Integrated Traction Control System
• The technical solution begins with a multi-zone, digitally controlled traction unit. Positioned immediately after the co-extrusion and cast cooling stages, this system applies precise, constant tension to the combined film web.
• By utilizing a closed-loop feedback mechanism, the traction unit eliminates micro-variations in polymer flow. This stable tensioning is essential for maintaining the mechanical integrity of the 2-layer structure, ensuring the film remains flat and uniform before entering the winder.

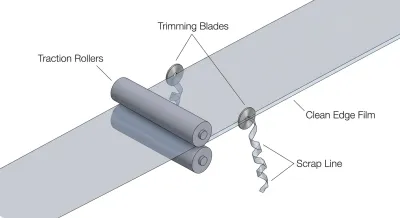

• 3. High-Precision Servo-Driven Trimming
• To achieve a professional-grade finish, the machine integrates dual-sided, servo-driven edge trimmers. These units provide several technical advantages:
• Laser-Guided Accuracy: The system tracks the film edge in real-time, shearing the web to an exact, consistent width.
• Clean Shear Technology: High-speed blades ensure a burr-free edge, which is vital for preventing film snaps during high-speed pre-stretching.
• Vacuum Extraction: Trimming debris is immediately removed via a vacuum system to prevent contamination and maintain a clean production environment.
• 4. Synergistic Stability and Performance
• The traction and trimming processes are fully integrated. The traction system adjusts in real-time based on the trimmer’s web width measurements. This creates a balanced, stable film ribbon that allows for:
• Higher Production Speeds: Maximizing throughput without compromising gauge uniformity.
• Enhanced Roll Geometry: Producing perfectly cylindrical rolls with high edge strength.
• Superior Downstream Performance: Ensuring the film performs flawlessly on automated pallet wrappers with zero premature breaks.

Conclusion: Future-Proofing Production

As the industry shifts toward thinner-gauge, high-performance films, web stability is no longer optional. This integrated system provides the technical foundation for high-efficiency manufacturing, reducing resin waste and ensuring a premium output that meets the rigorous standards of modern logistics.
